Regular analysis can extend the life of both fluid and system. Hydratech’s Fluid Monitoring Program (FMP) is a very straight forward, effective way to proactively monitor closed-loop system condition.
Performance Rating
Summary - Rating: BExcellent heat transfer and pumping characteristics, low toxicity but can prove a challenge to eliminate corrosion in some systems.
Efficiency - Rating: AExcellent heat transfer and pumping characteristics places LVF at the top of the efficiency tree, for all water-based antifreeze solutions.
Antifreeze - Rating: ADepending on concentration can provide freeze protection down to -60°C.
Corrosion Control - Rating: CCorrosive when in contact with air and only recommended for certain metals and closed loop pressurised systems.
Toxicity - Rating: BLD50 (Oral Rat) of 7,000 to 20,000 mg/kg body weight depending on concentration in water. Not FDA approved as a food additive, but can be considered food-safe and widely used in food & beverage cooling systems.
Physical Properties
Density:1.2 - 1.4 g/cm³
pH:7.5 - 9.0 depending on inhibitors
Boiling Point:>100°C
Characteristics:a clear, low viscosity liquid. It is salty to the taste and has a non-pungent but characteristic aroma.

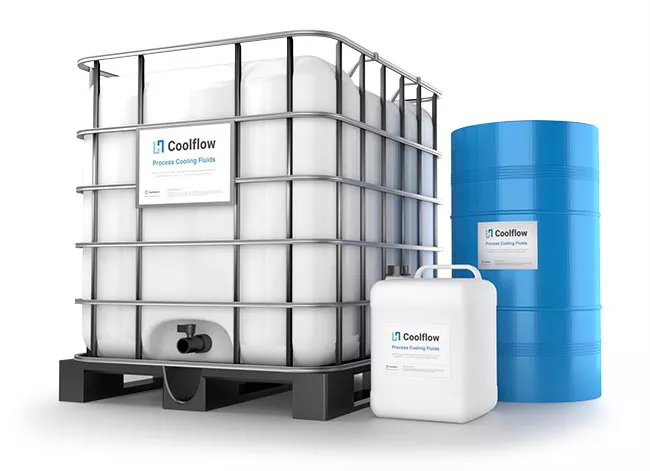

Available in: 5, 10, 20, 25, 205 & 1000 litre containers and bulk tankers
Coolflow LVF Range
Coolflow LVF ready-to-use heat transfer fluids are available in the following strengths.
Coolflow LVF
Frost Protection °C
Dynamic Viscosity MPas (cP)
Thermal Conductivity (W/mk)
Refractive Index
LVF20
-20
1.8
0.560
1.36400
LVF30
-30
1.9
0.530
1.37300
LVF40
-40
2.2
0.520
1.38100
LVF50
-50
2.6
0.500
1.38500
LVF60
-60
2.9
0.480
1.39200
